Bendi B55AC Narrow Aisle Articulated Material Handling Equipment
Bendi Rear Wheel Drive High Capacity, High Lift Narrow Aisle Multipurpose Electric Articulating Forklift
The Bendi model B55AC works in aisles as narrow as 2.13M. The B55AC high volume model has a basic capacity of 2500kg at 600mm load centre and has lift heights available to 9.14M.
The B55AC model is a 4-wheel articulating forklift with dual independently driven rear-drive tyres and soft-poly front load tyres. Excellent traction, braking and power enable climbing steep ramps with loads. Three or four stage masts are available. The B55AC can work inside and outside on paved surfaces and have a floating front axle, allowing the truck to ride smoothly over uneven floors and do the jobs of reach and counterbalanced trucks but with much heavier loads and in much narrower aisles.
Exceptional Performance and Manoeuvrability

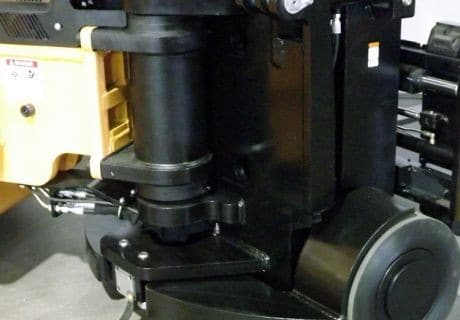

Equipped with the Landoll DuraSteer™ front wheel hydraulic steering, the B55AC provides exceptional control and makes load placement and retrieval superior to the competition.
Maximises Material Handling Productivity

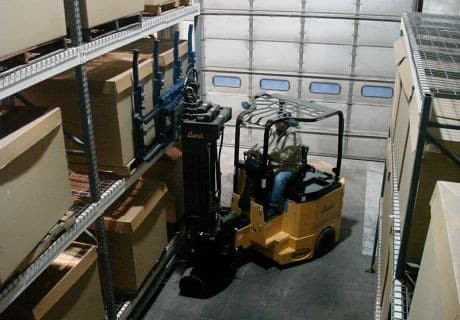

The versatile Bendi B55AC forklift replaces conventional reach and counterbalanced fork trucks in standard warehouse operations. The unique design allows operators to use it as a counterbalance truck indoors or out, while operating in narrow aisles in your warehouse, replacing reach trucks that require much wider aisles. The Bendi B55AC has large diameter tyres and the truck has great under clearance for avoiding floor obstructions. One truck can go from inside the dock to the rack, eliminating staging and additional operators and support forklifts.
*Based on 1200mm long x 1000mm wide load.
- 2500kg capacity at 600mm load centre
- Four-wheel design, dual rear wheel drive provides excellent power, braking and traction
- Ergonomic design for exceptional operator comfort and safety
- Integral wide stroke side-shifter makes placing and picking loads effortless
- DuraSteer™ front wheel hydraulic steering provides smooth, reliable, long-lasting steering control
- Independently controlled rear wheels allow independent speed control of each drive tyre based on steering angle
- Creep speed mode adds enhanced control when handling loads at high elevations or while training operators
- High visibility mast allows optimum safety and control
- AC traction and hydraulic motors ensure minimal maintenance and high efficiency
- High efficiency Curtis AC controllers provide trouble free operation
- Interactive LCD status monitor (BDI with lift Interrupt, hour meter with service monitor, diagnostic code display, input device calibration)
- 48-Volt electrical system
- Cold storage conditioned to -30°C
